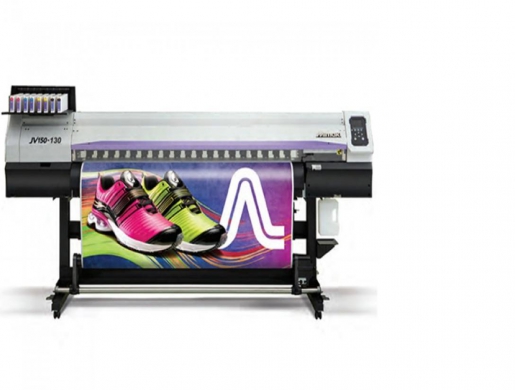

MIMAKI JV150-160 SERIES 64 INCH PRINTER

  • Share on social media

Specifications :

Print system On-demand piezo, one print head per color
8 channels for a variety of ink configurations
Max print width JV150-160: 63.3 inches (1610 mm)
Print resolution 300, 540, 720, 1080, 1440 dpi
Maximum media width JV150-160: 1,620mm (63.8″)
Max print speed JV150-160: 605 SqFt/Hr (56.2 SqM/Hr)
Ink type Mimaki SS21 Eco-Solvent: C, M, Y, K, Lc, Lm, Lk, Or
Mimaki ES3 Eco-Solvent: C, M, Y, K, Lc, Lm
Mimaki Sb54 Dye Sublimation: Bl, M, Y, K, Lbl, Lm
Ink capacity 440ml cartridges standard
Max roll weight 88 lbs. (40 kg)
Max media thickness 1.0 mm
Operational environment Temp: 59˚ – 86˚ F (15˚ – 30˚ C)
35-65% RH (non-condensing)
Connectivity USB 2.0
Power supply Single-phase AC 100-120V (AC 220-240V) x2
Power consumption 100V: 1.44kW × 1 or less, 200V: 1.92kW × 1 or less
Dimensions (W × D × H) JV150-160: 108 x 28 x 71 inches (274 x 71 x 145 cm)
Weight JV150-160: 408 lbs. (185 kg)

Town / City / village:Mbabane - Swaziland
Creation Date11.07.2021
Ad number:16593
CategoryElectronic devices
Keywords:Digital Printing
