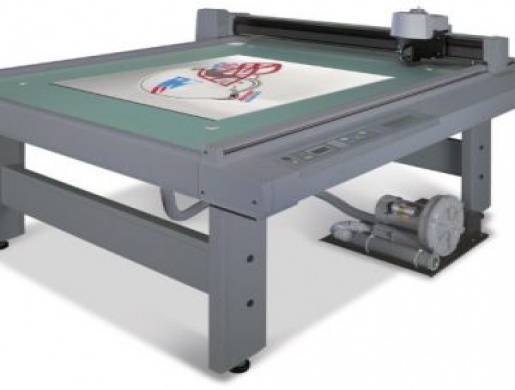

Mimaki CF2-1215
CF2-0912** CF2-1215** CF2-1218**
Effective
plotting
area X
(Sensor model) 1,170mm(46.1″) 1,470mm(57.9″) 1,770mm(69.7″)
X
(No sensor model) 1,200mm(47.2″) 1,500mm(59.1″) 1,800mm(70.9″)
Y 900mm(35.4″) 1,200mm(47.2″)
Motorization X,Y,Z,θ 4 axes DC software servo
Maximum plotting speed 50cm(19.7″) / s
Maximum acceleration 0.5G
Mechanical resolution X:0.00234mm(0.00009″) Y:0.003125mm(0.0001″) θ:0.05625
Command resolution 0.025mm(0.001″) / 0.01mm(0.0004″)
(changeable from operation panel)
Static
accuracy *1 Repetition accuracy ±0.1mm(0.004″)
Distance accuracy ±0.1mm(0.004″) or ±0.1% whichever is greater
Origin repetition accuracy ±0.1mm(0.004″)
Maximum thickness of set work T / TD:25mm(1″) RT / RC:20mm(0.8″)
Work fixation Air suction by a blower
Receiver buffer size 1MB
Command MGL-IIc3(Support MGL-IIc) *2
Interface RS-232C
Dimension Width 1,760mm(69.3″)
or less 2060mm(81.1″)
or less 2360mm(92.9″)
or less
Depth 1,600mm(63.0″)
or less 1900mm(74.8″) or less
Height 1,100mm(43.3″) or less
Weight 140kg(308lbs) 165kg(364lbs) 180kg(397lbs)
Operation environment Temperaturet : 5-40ºC
Humidityt : 35-75%(Rh)No condensation
Power requirement Main Unitt : 50/60Hz AC100/120/220/240V(tap changing)
Blowert : Stated separately
Power consumption Main Unit : 300VA Blowert : Stated separately
